Preparing the software stack#

Before you can fly your Duckiedrone you need an up-to-date software stack running on the drone and a browser on your base station that can reach the Duckietown Dashboard.

What you will need

What you will get

  • A drone ready to fly from the Duckietown Dashboard

Attention

This chapter replaces the legacy pidrone_pkg / screen workflow. On the ente distribution the flight code runs inside Duckietown containers and is controlled from the Duckietown Dashboard. You no longer need to ssh into the drone or start any scripts by hand.

1. Update the Duckietown Shell#

On the base station, make sure you are on the ente profile and that dts itself is current.

dts profile list          # 'ente' should be the active profile
pipx upgrade duckietown-shell
dts update
dts desktop update

2. Update the drone software#

Pull the latest Duckiedrone containers onto the drone. This can take several minutes the first time.

dts duckiebot update -t duckiedrone --distro=ente -f ROBOT_NAME

Note

Replace ROBOT_NAME with the hostname you assigned to your Duckiedrone. On the default image the hostname is amelia.

Wait for the command to terminate before continuing. When it finishes the drone is running:

  • dashboard — the web UI you will use to fly

  • ros2-mavros — the MAVROS bridge between ROS 2 and the PX4 flight controller

  • mavlink-proxy, driver-tof, state-estimator, pid-controller, visual-odometry — the flight stack

3. Open the Duckietown Dashboard#

On the base station, open a browser and navigate to

http://ROBOT_NAME.local/

The landing page is the Duckietown Dashboard. The first time you open it on a freshly-flashed robot, it will show a four-step setup wizard. Complete the steps until you land on the robot info page.

Tip

If the page does not load, confirm the drone is reachable with ping ROBOT_NAME.local. See First connection for network troubleshooting.

4. Verify the flight stack is healthy#

On the robot info page, click Mission Control in the top navigation bar. The default mission is a grid of widgets showing the live state of the drone:

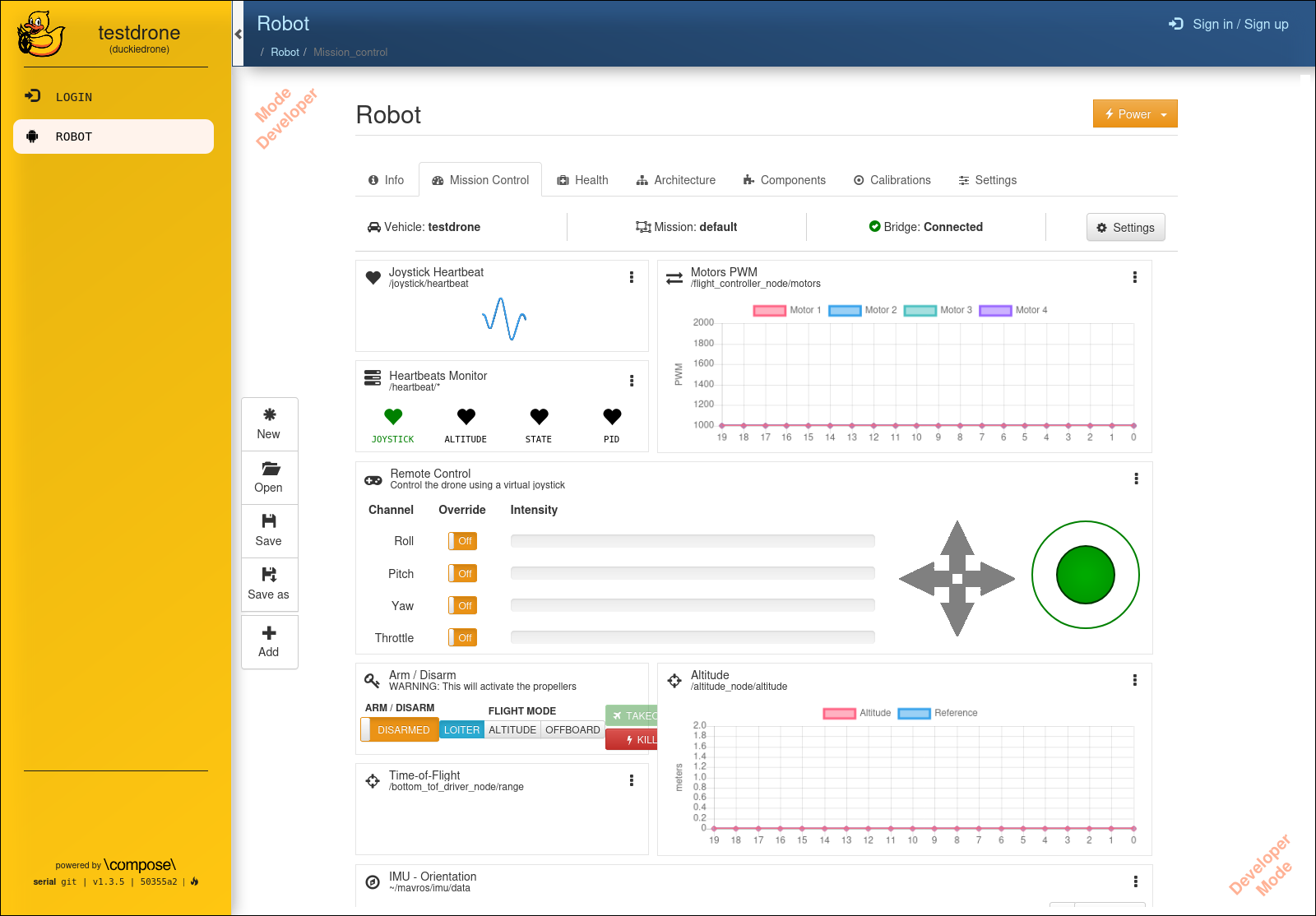

../_images/mission_control_overview.png

Fig. 54 The default Duckiedrone mission, before arming.#

Before the first flight, confirm:

  • Heartbeats Monitor (top left) — the JOYSTICK, ALTITUDE, STATE and PID indicators are all green. A red indicator means the matching node is not publishing.

  • Motors PWM — four bars are visible, all close to the minimum (~1000). If no bars appear, the Flight Controller node is not streaming motor commands.

  • Altitude — the blue trace updates as you gently move the drone up and down.

  • Time-of-Flight — the distance reading (in metres) reacts to your hand passing under the drone.

  • IMU – Orientation — the attitude indicator tilts when you tilt the drone.

  • Camera — the image stream shows what the Duckiedrone sees.

Tip

If the Arm / Disarm widget shows nothing under FLIGHT MODE, it means /mavros/state has not published yet. Reload the page after a few seconds; if the issue persists, see Common issues.

When all widgets are populated, the software stack is healthy and you can proceed to Flying your Duckiedrone.
