What you will need

What you will get

  • Knowledge about virtual Duckietown robots and how to interact with them.

Virtual Duckietown robots#

Virtual Duckietown robots (Duckiebot, Duckiedrone, Traffic Lights, Watchtowers) are “digital twins” of their physical counterparts, and are designed to operate within the Duckiematrix virtual environment.

In other words, virtual Duckietown robots enable running the full software stack of robots on a local machine, allowing for the full simulation of any aspect of that Duckietown robot, and streamlining integration tests.

Once a virtual Duckietown robot is running, it will behave in the same way as its physical equivalent, including how it responds to dts commands.

Getting started with virtual Duckietown robots#

The typical virtual robot workflow is:

  1. Create a virtual robot

  2. List: check the existance and status of all your virtual robots, in particular if previous creation was successful

  3. Start: turn a virtual robot on

  4. Connect to your virtual robot, similarly to ssh’ing into a physical robot

  5. Attach: link a virtual robot to a running Duckiematrix engine entity

  6. Stop: turn a virtual robot off when done with your session

  7. Destroy: when needed, permanently delete a virtual robot

The Virtual Robot dts API#

Like most things in Duckietown, the primary way to perform operations on virtual robots is through the Duckietown Shell (dts). The following is a list of operations you can perform:

Create#

To create a virtual Duckietown robot of type TYPE, configuration CONFIGURATION, and hostname ROBOT_NAME:

dts duckiebot virtual create --type TYPE --configuration CONFIGURATION ROBOT_NAME

for example:

dts duckiebot virtual create --type duckiebot --configuration DB21J vargo

This command will take several minutes to complete, and is analogous to the dts init_sd_card of physical robots. Learn about supported TYPE and CONFIGURATION there: Burning the SD card with dts init_sd_card.

List#

To list the existing virtual Duckietown robots and their statuses, run:

dts duckiebot virtual list

After creating a virtual Duckiebot called vargo, for example, it would show:

      |   Type    | Model |    Status
----- | --------- | ----- | ------------
vargo | duckiebot | DB21J |     Down

Start#

To start the virtual Duckietown robot ROBOT_NAME, run:

dts duckiebot virtual start ROBOT_NAME

for example:

dts duckiebot virtual start vargo

will “boot up” your virtual Duckiebot, similary to powering up a physical robot. At this point, for example, the virtual robot’s Dashboard will be available at http://ROBOT_NAME.local. Running the list command again will show:

      |   Type    | Model |    Status
----- | --------- | ----- | ------------
vargo | duckiebot | DB21J |   Running

Connect#

To “ssh” into the virtual Duckietown robot ROBOT_NAME, run:

dts duckiebot virtual connect ROBOT_NAME

for example:

dts duckiebot virtual connect vargo

will result in:

root@vargo:/# ls
bin  boot  code  data  dev  entrypoint.sh  etc  home  lib  media  mnt  opt  proc  root  run  sbin  secrets  srv  sys  tmp  triggers  usr  var

Restart#

To restart the virtual Duckietown robot ROBOT_NAME, run:

dts duckiebot virtual restart ROBOT_NAME

Stop#

To stop the virtual Duckietown robot ROBOT_NAME, run:

dts duckiebot virtual stop ROBOT_NAME

Destroy#

To destroy the virtual Duckietown robot ROBOT_NAME and remove all of its Docker images, run:

dts duckiebot virtual destroy ROBOT_NAME

Attaching Virtual Robots#

For a Duckietown robot to act and sense inside the Duckiematrix, it needs a proxy inside the Duckiematrix (a Duckiematrix entity) to attach to.

A Duckietown robot outside the Duckiematrix is said to be attached to a Duckiematrix entity when all of its sensors and actuators are linked to their virtual counterparts inside the Duckiematrix.

To attach the Duckietown robot ROBOT_NAME to the Duckiematrix entity ENTITY_NAME (e.g., map_0/vehicle_0 by default), run the following command, where ENGINE_HOSTNAME is the optional hostname (or IP address) of the Engine:

dts matrix attach [--engine ENGINE_HOSTNAME] ROBOT_NAME ENTITY_NAME

The ENGINE_HOSTNAME will be shown in the terminal after starting the engine. An example could be therefore:

dts matrix attach vargo -e 192.168.139.2 map_0/vehicle_0

when after running the engine the terminal showed:

[...]
YYYY-MM-DD hh:mm:ss orbstack duckiematrix[43] INFO The Engine can be reached at any of these IP addresses:

         -  127.0.0.1           (local machine only)
         -  0.250.250.65
         -  192.168.139.2       (local network only)
         -  192.168.215.1       (local network only)
[...]

Note

This applies for both physical and virtual Duckietown robots. Use the --dreamwalk option to enable the connection of physical Duckiebots to the Duckiematrix (i.e., commands will be sent to their physical actuators as well as their Duckiematrix counterparts).

Attention

Make sure that your computer’s firewall is set to inactive or that an allow rule has been added for ENGINE_HOSTNAME.

To show the status of your computer’s firewall, run:

sudo ufw status

To add an allow rule for ENGINE_HOSTNAME to your computer’s firewall, run:

sudo ufw allow ENGINE_HOSTNAME

Supported Drivers#

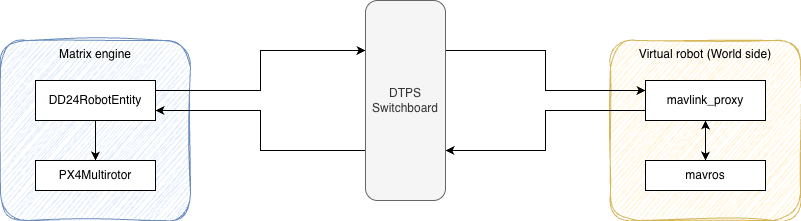

Virtual Duckietown robot drivers allow for the communication between a Duckietown robot’s ROS stack and an entity inside the Duckiematrix.

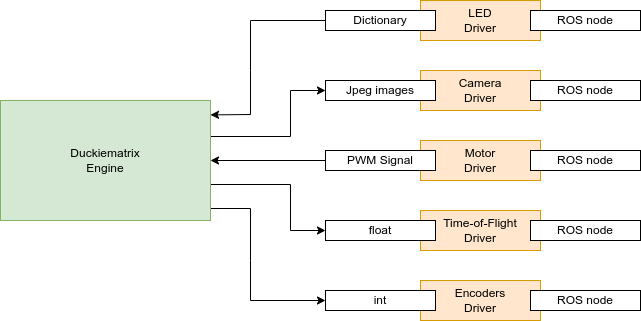

Data types exchanged with the Duckiematrix by the virtual Duckietown robot drivers.

Fig. 11 Data types exchanged with the Duckiematrix by the virtual Duckietown robot drivers.#

Implementation status#

Driver

Implemented

Camera

Yes

Time-of-Flight

Yes

IMU

Yes

LED

Yes

Encoder

Yes

Wheel

Yes
