LX: Braitenberg Vehicles

What you will need

• Learning experience computer setup: General Procedure for Running Learning Experiences

• (recommended) A successful Duckiematrix installation: Duckiematrix installation

• (optional) A “Ready to Go” Duckiebot: Getting Started with your Duckiebot

What you will get

• Running the Braitenberg Vehicles (BV) learning experience.

This page describes how to run the Braitenberg Vehicles learning experience.

Warning

If you are using a Duckietown Workspace, the WebGL (browser) versions of the Duckietown Viewer and Duckiematrix can be run inside or outside the Duckietown Workspace. If dts is installed on the host machine, commands that launch native Duckietown Viewer apps or the Duckiematrix Renderer, such as dts matrix run, can also be run in either location. When one of these commands is run inside the Duckietown Workspace, it is automatically delegated to the host machine, where it launches the native UI. The --standalone flag starts the Duckiematrix Engine in the environment where the command is run.

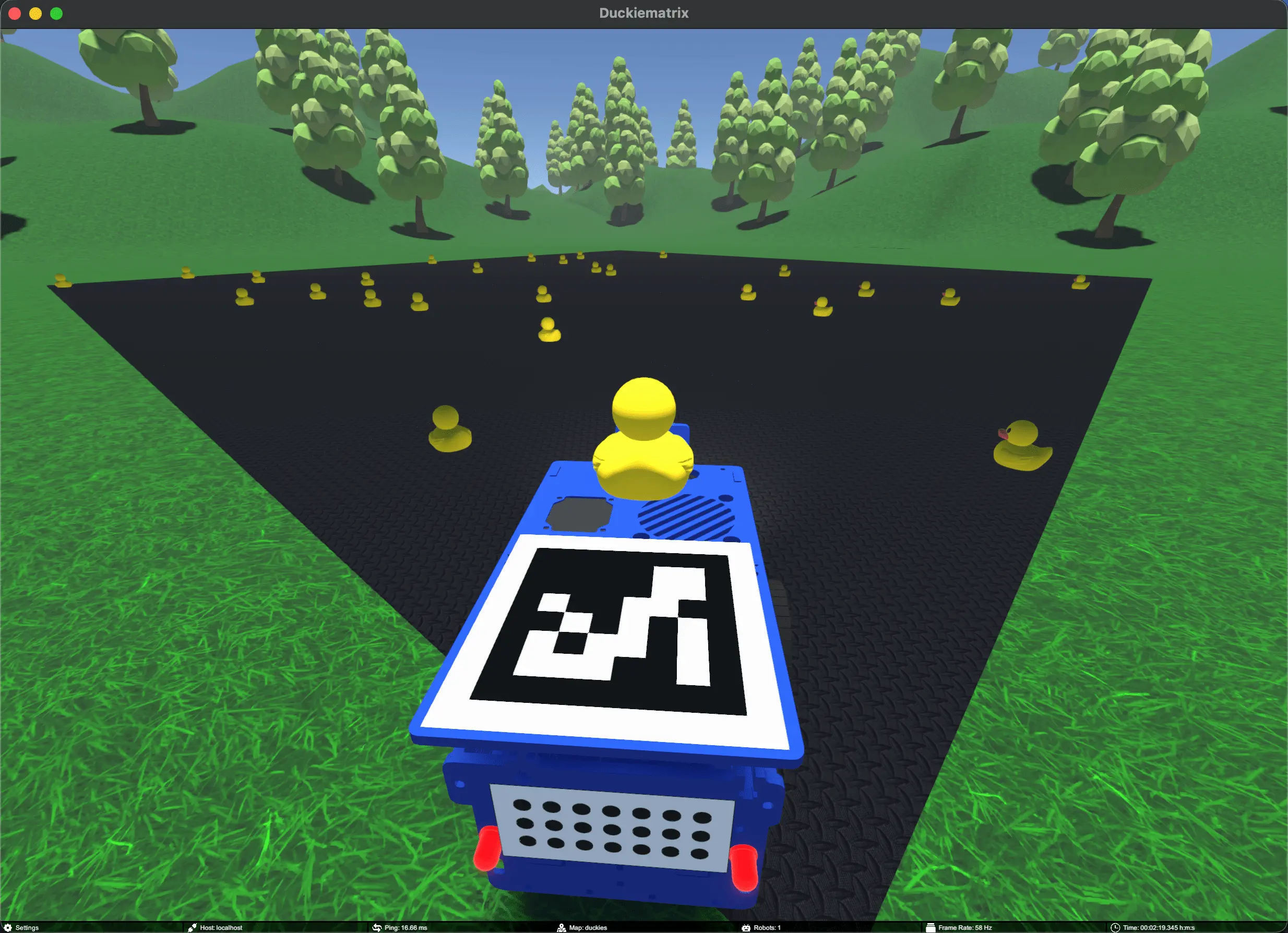

Fig. 163 Welcome to the Braitenberg Vehicles LX!

Intended Learning Outcomes

In this learning experience, learners will:

• Experience the emergence of autonomy from atoms and bits.

• Design and implement a vision-based sensorimotor connection-based agent to enable simple autonomous behaviors on Duckiebots.

• Deploy the agent on physical or virtual Duckiebots.

• Tune the agent to have the Duckiebot avoid a sea of duckies.

Note

This exercise can be run on a physical Duckiebot or on a virtual Duckiebot in the Duckiematrix.

For guided setup instructions, lecture content, and more related to this LX, see our Self-Driving Cars with Duckietown MOOC on EdX.

Forking the repository

1. Create a fork

Navigate to the Braitenberg vehicles repository.

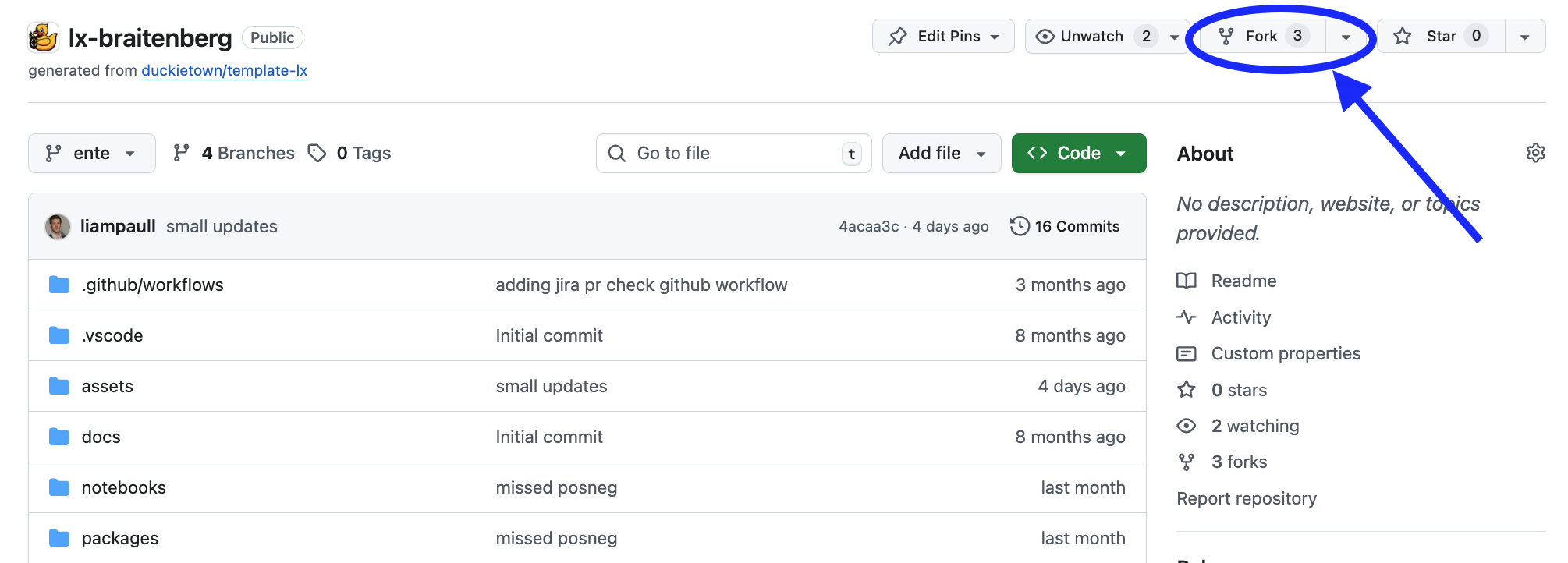

Find and press the “Fork” button on the top right:

Fig. 164 Fork the LX to be able to make local changes while still being able to receive updates.

This will create a new repository at: <your_github_username>/lx-braitenberg.

2. Clone the fork

Clone the fork on your computer, replacing your GitHub username in the command below, and navigate to the new folder:

git clone [email protected]:<your_github_username>/lx-braitenberg
cd lx-braitenberg

3. Configure upstream repo

Configure the Duckietown version of this repository as the upstream repository to synchronize with your fork.

List the current remote repository for your fork:

git remote -v

Specify a new remote upstream repository:

git remote add upstream https://github.com/duckietown/lx-braitenberg

Confirm that the new upstream repository was added to the list:

git remote -v

You can now push your work to your own repository using the standard GitHub workflow, and the beginning of every exercise will prompt you to pull from the upstream repository, updating your exercises to the latest version (if available).

Keeping your System Up To Date

• 💻 These instructions are for ente learning experiences. Ensure your Duckietown Shell is set to an ente profile (and not a daffy one). You can check your current profile with:

  dts profile list


  To switch to an ente profile, follow the Duckietown Manual DTS installation instructions.

• 💻 Pull from the upstream remote to synchronize your fork with the upstream repository:

  git pull upstream ente


• 💻 Make sure your Duckietown Shell is updated to the latest version:

  pipx upgrade duckietown-shell


• 💻 Update the shell commands:

  dts update


• 💻 Update your laptop/desktop:

  dts desktop update


• 🚙 Update your Duckiebot:

  dts duckiebot update DUCKIEBOT_NAME


  (where DUCKIEBOT_NAME is the name of your physical or virtual Duckiebot.)

Launching the Code Editor

Important

All dts code commands should be run from the root directory of the learning experience.

Making sure you are inside the path of the specific learning experience you want to work on, open the code editor by running:

dts code editor

Wait for a URL to appear on the terminal, then click on it or copy-paste it in the address bar of your browser to access the code editor. The first thing you will see in the code editor is a version of these instructions. At this point you can start following the LX-specific indications shown in your code editor.

Walkthrough of Notebooks

Inside the code editor, use the navigator sidebar on the left-hand side to navigate to the notebooks directory and open the first notebook.

Follow the instructions on the notebook and work through them in sequence.

In many cases the last notebook will instruct you to write some code inside the learning experience directory.

Once you have done that you will need to build your code before testing it.

Testing with the Duckiematrix

To test your code in the Duckiematrix, attach either a physical or virtual robot to a Duckiematrix Entity. The steps below use a virtual robot; for instructions on attaching a physical robot, see Attaching a Robot to a Remote Engine.

Creating a virtual Duckiebot

To follow the virtual-robot workflow, create one with the command:

dts duckiebot virtual create --type duckiebot --configuration DB21J ROBOT_NAME

When you run the command, DTS prompts you to enter and confirm the password for the virtual robot’s duckie account; the characters you enter are not displayed. ROBOT_NAME is the hostname. It can be anything you like, subject to the same naming constraints of physical Duckiebots. Make sure to remember your robot (host)name for later.

Then you can start your virtual robot with the command:

dts duckiebot virtual start ROBOT_NAME

You should see it with a status Booting and finally Ready if you look at dts fleet discover:

     | Hardware |   Type    | Model |  Status  | Hostname
---  | -------- | --------- | ----- | -------- | ---------
ROBOT_NAME |  virtual | duckiebot | DB21J |  Ready   | ROBOT_NAME.local

Now that your virtual robot is ready, you can start the Duckiematrix. From this exercise directory do:

dts code start_matrix

Note

If you are using a Duckietown Workspace, run dts code start_matrix --no-renderer inside the Duckietown Workspace. If dts is installed on the host machine, then run dts matrix run inside or outside the Duckietown Workspace. When the command is run inside the Duckietown Workspace, the command is automatically delegated to the host machine, where it launches the native Renderer.

You should see the Unity-based Duckiematrix simulator start up. For more details about using the Duckiematrix see Simulation and the Duckiematrix.

To run the WebGL (browser) version of the Duckiematrix, add the --browser flag.

Note

For the WebGL (browser) version of the Duckiematrix, if the colors look desaturated, try a different browser.

Other virtual Duckiebot useful commands

Once you are done for the day, do not forget to stop your virtual robot:

dts duckiebot virtual stop ROBOT_NAME

If in doubt, you can check the status of your virtual scuderia at any time with:

dts duckiebot virtual list

Building the Code

From inside the learning experience root directory, you can build your code with:

dts code build -R ROBOT_NAME

where ROBOT_NAME can be either a physical or virtual robot.

Testing on a Duckiebot or in the Duckiematrix

To test your code on your physical Duckiebot you can do:

dts code workbench -R DUCKIEBOT_NAME

To test your code in the Duckiematrix:

dts code workbench -m -R ROBOT_NAME

(note the -m flag which means that we are running in the matrix)

In another terminal, you can launch the noVNC viewer, which can be useful to interact with the virtual robot in different ways depending on the specific LX:

dts code vnc -R ROBOT_NAME

where ROBOT_NAME could be the physical or the virtual robot (use whichever you ran the dts code workbench and dts code build command with).

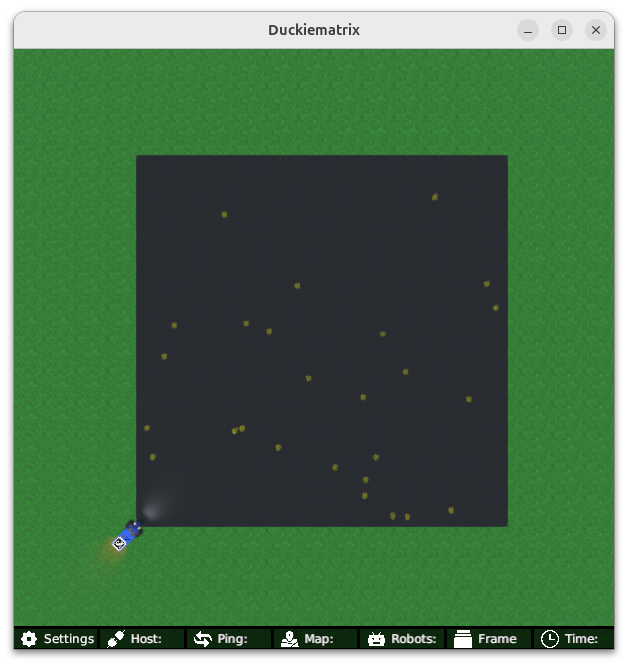

Fig. 165 Example Duckiematrix splash screen after starting the Braitenberg Vehicles LX.

Troubleshooting

If you run into any issues while building the image, you can search the troubleshooting symptoms below or reference the How to Get Help section of this manual.

Troubleshooting

SYMPTOM

dts :  The path '...' does not appear to be a Duckietown project.
:  The metadata file '.dtproject' is missing.

RESOLUTION

You need to be in the root directory of the LX in order to run the dts code commands.

Troubleshooting

SYMPTOM

When I run dts code editor, I get the error dts :  No valid DTProject found at '/path/to/lx'.

RESOLUTION

Make sure you are executing the commands from inside a learning experience folder (e.g., */lx-control/)

Troubleshooting

SYMPTOM

My virtual robot hangs indefinitely when I try to update it.

RESOLUTION

Try to restart it with the following command, where ROBOT_NAME is the name of your virtual robot:

dts duckiebot virtual restart ROBOT_NAME
